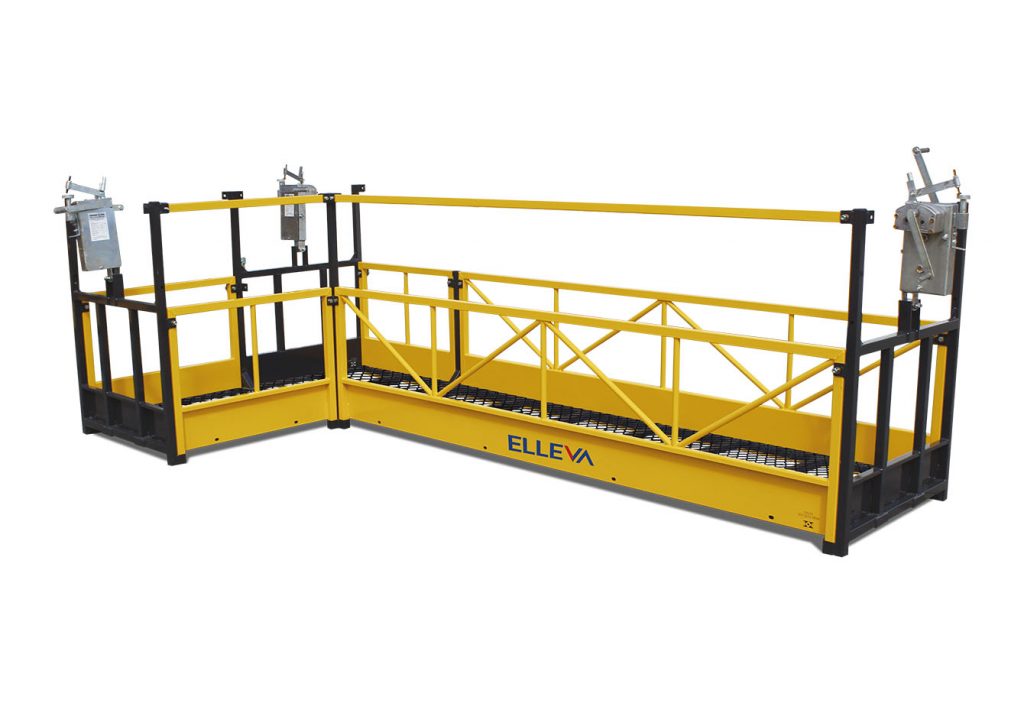

Corner Suspended Platform
Movement performed using three manual traction hoist. The equipment has side protections prepared to prevent damage to the cables and components during the operations. Fixed modules with high resistence screws, with variable compositions using 1, 2 and 3 m modules.
Contact UsMovement performed using three manual traction hoist. The equipment has side protections prepared to prevent damage to the cables and components during the operations. Fixed modules with high resistence screws, with variable compositions using 1, 2 and 3 m modules.
| Compositions | 1 + 1 m - 1 + 2 m - 1 + 3 m - 2 + 2 m |
| Composition Weight | 265 - 305 - 340 - 340 kg |
| Load capacity | 435 - 395 - 360 - 360 kg |
| Lifting speed | 5 m/min |
| Platform Width | 90 cm |
| Angle of Plataform | 3 a 8o |
| Steel Cable Specification | Ø 7.93 mm (5/16”) construction |
| Floor (Optional) | expanded sheet or aluminum |
