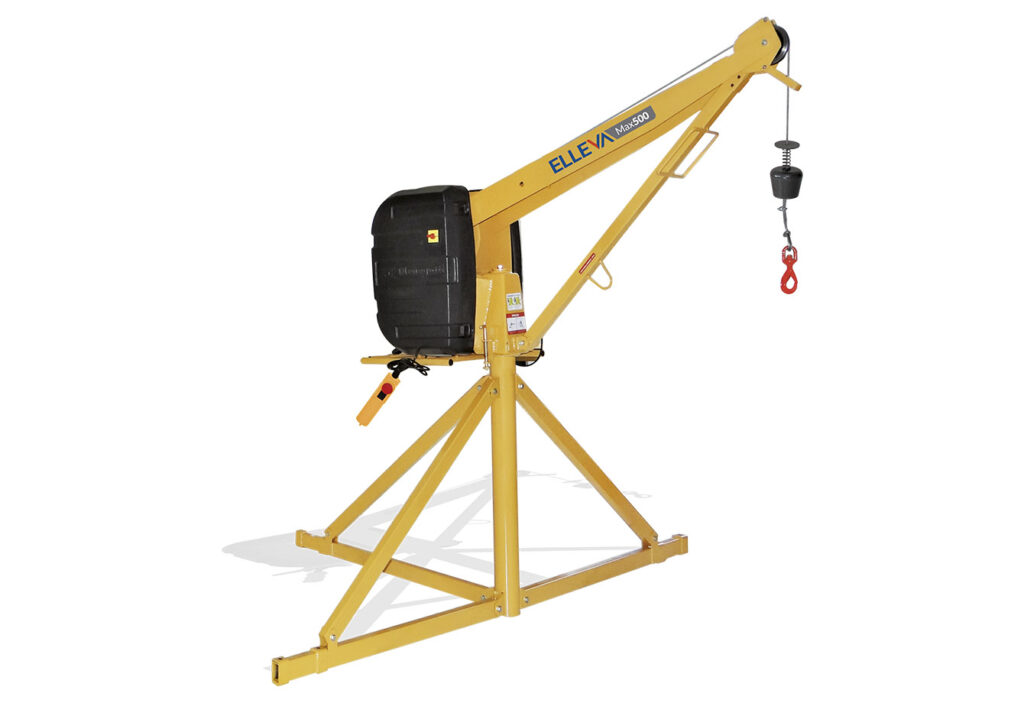

Elleva Max 500
Practicality and speed and operation in moving materials. Equipment designed to save time and reduce the work delivery period, much more efficient. The unique truss tripod that ensures greater stability and handling and the telescopic lifting in extensible rods reaching up to 2.00 m, make this machine highly efficient.
Contact UsPracticality and speed and operation in moving materials. Equipment designed to save time and reduce the work delivery period, much more efficient. The unique truss tripod that ensures greater stability and handling and the telescopic lifting in extensible rods reaching up to 2.00 m, make this machine highly efficient.
| Lifting Capacity | 500 kg |
| Lifting Speed | 25 m/min. |
| Lifting Height | 80 m |
| Turning Angle | 360° |
| Spear Lenght | 1.20 m |
| Steel Cable Specification | 19 x 7AA • Ø1⁄4" |
| Resistance class | Non Rotating |
| Net weight | 215 kg |
| Dimensions L x W x H | 2635 x 2762 x 2043 mm |
| Engine | Electric - 4 Poles - Three Phase - Brake Motor |
